High voltage tester 25kV
Home / Test Equipment / Best quality High voltage tester 15kv

Best quality High voltage tester 15kv

₹130,000.00

SKU: HVT-15-ST-350

Category:

TECHNICAL DATA:(High voltage tester )

Voltage Range: 0-15KV

Accuracy: +/-2% of reading, +/- 1 digit for KV

Current rage: 0-350mA (customizable)

Trip current range: 0-300mA

Accuracy: +/-2% of reading, +/- 1 digit for KV

For more details about the specification, kindle click the link below.

We can deliver the product up to your nearest transport office.

Available on backorder

Tags: , , , , , ,

Description

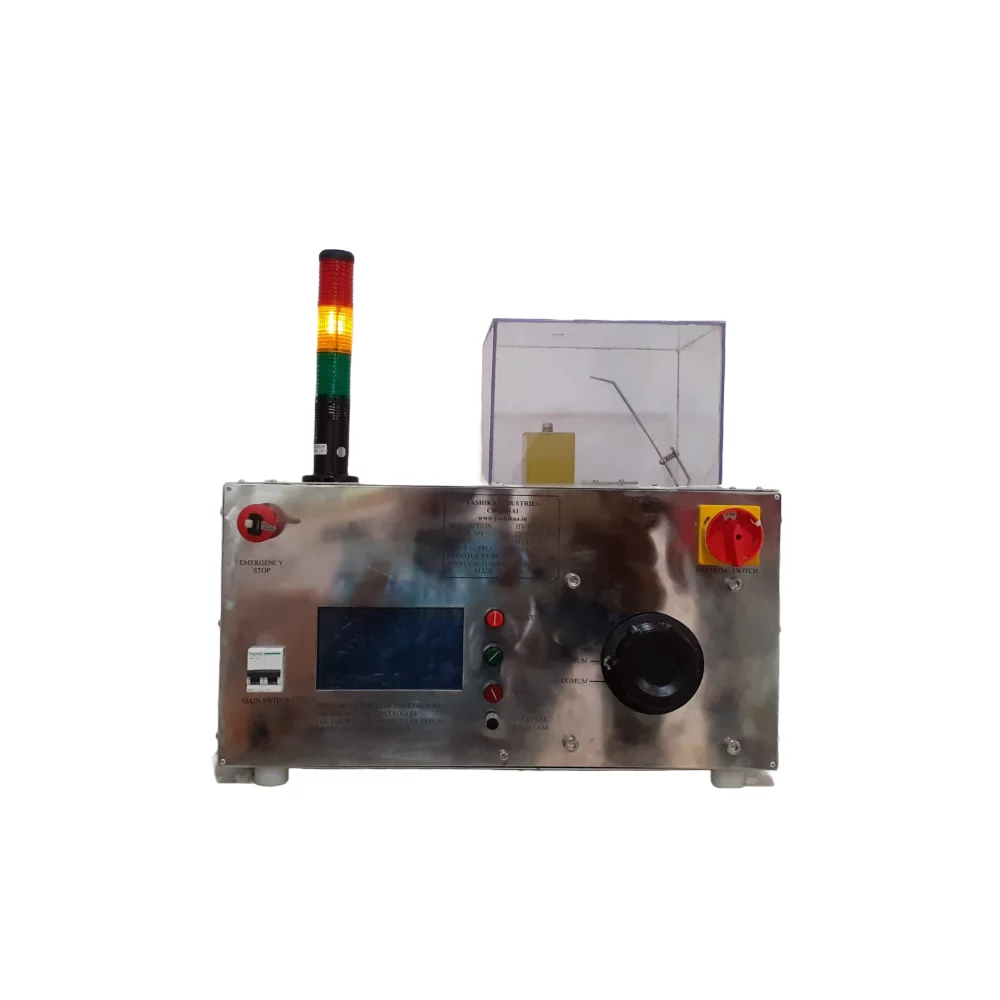

The HV Tester is robust, compact, and easily operable. It is designed for conducting AC, dielectric strength test of electrical components. The tester is used for safety purpose by providing protection by checking over current tripping, over voltage tripping and short circuit test. An emergency stop button is provided in case any high voltage or short circuit. The system shall discharge after test end.

â–  Easy and compact to operate.
â–  Zero interlock safety system
â–  Manual and automatic test cycles
â–  Overcurrent, overvoltage, and overheating protection
â–  LCD display
â–  The earth switch position shall be visible on HMI
â–  Electrical powered earth switch
â–  Trolley mounted.
â–  Built-in-timer.
â–  Protective ground circuit
â–  Beacon mounted top of the control unit.
â–  Plug and play type connector with no Live parts exposed.
â–  User authentication
â–  Motorized variac

Additional information

Weight60 kg

Reviews

There are no reviews yet.
